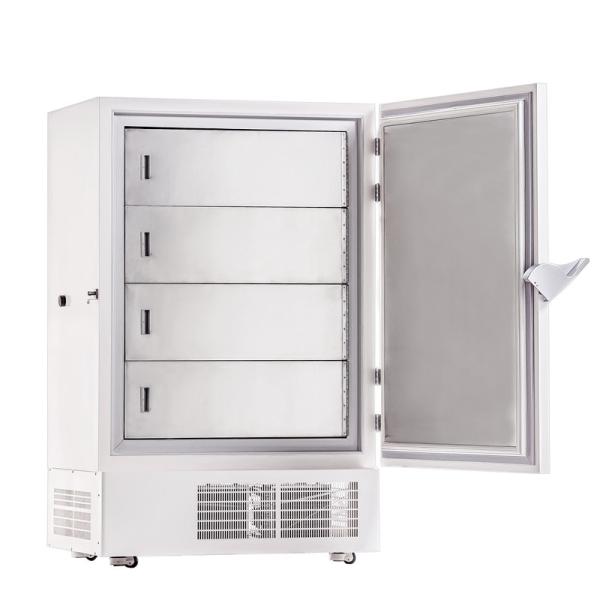

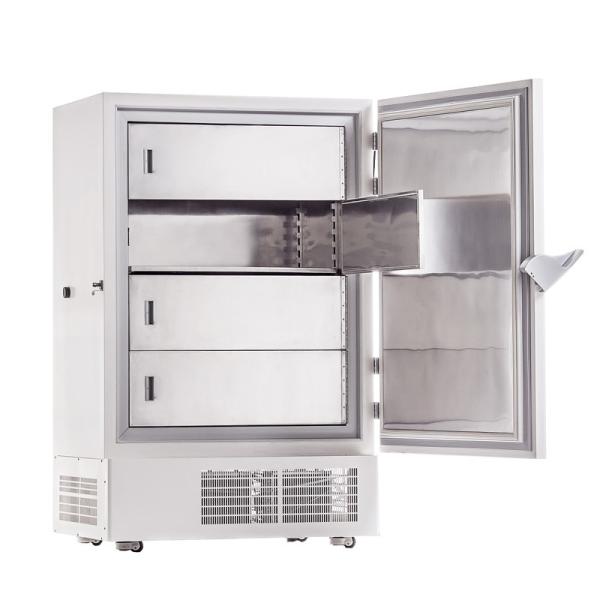

Minus 40 Degree Stainless Steel Medical Deep Freezer LED Digital Display 936L For Vaccine

-40 ℃ Stainless Steel Upright Deep Freezer For Vaccine With 936 Liter Capacity

Independent inner door to decrease the cooling leaking out, and provide more stable inside temperature

	Model	MDF-40V936	Parameter
	Capacity(L/cu.ft)	936/33.05	Dimensions
	NT./GT.(kg)	372/416
	Exterior size(W*D*H)(mm)	1320*980*2100
	Interior size(W*D*H)(mm)	1000*700*1335
	Package size(W*D*H)(mm)	1360*1135*2170
	CBM	3.35
	20GP/40GP/40HQ	8/16/16
	High/low temperature	Y	Alarm Systerm
	Power failure	Y
	Sensor error	Y
	Filter check	Y
	Temperature controller failure	Y
	Low battery	Y
	Condenser clean	Y
	High ambient temperature	Y
	Door ajar	Y
	Power failure backup system(alarm)	72h
	Foot	/	Spare Parts
	Castor	Y
	Inside door	Y
	Test hole QTY/diameter	1/18MM
	USB port	Y
	Remote alarm port	Y
	Certification	ISO9001,13485,14001,CE	Other

	Shelf/drawer	Shelves	Specificaitons
	Cooling method	Direct cooling
	Defrost	Manual
	Refrigerant	R404A
	Power consumption(kWh/24h)	14.5
	Noise(db)	50
	Ambient temperature(℃)	10~32℃
	Temperature range(℃)	-25~-40℃
	Compressor brand/QTY	SECOP/2	Cooling system
	Condenser	Copper tube and finned
	Sensor	PTC
	Temperature controller	Microprocessor
	Display	Digital display
	Voltage/frequency(V/Hz)	220/50Hz	Power Systerm
	Power(W)	1000W
	Current(A)	5.8A
	Inside material	Stainless steel	Material
	Outside material	Color sprayed steel
	Insulation	PURF

Main Points

1. LED digital display and increment tolerance at 0.1ºC
2. Independent inner door to decrease the cooling leaking out, and provide more stable inside temperature performance
3. High density CFC-Free urethane foam insulation.

Reliability

1. Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.
2. Microprocessor control, digital display, adjustable temperature range: - 30ºC--40ºC
3. LED digital display for clear observation,
4. Wide voltage tolerance design with applicable voltage range of 187-242V/AC

Safety

1. Multiple malfunction alarms to detect high and low temperature , sensor error, power off, temperature controller malfunction, door ajar.
2. Two types of alarm indications: audible buzzing and visual flashing light.
3. Corrosion proof cabinet interior design
4. Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from the damage

Carton packing with strong belt Package size(W*D*H)(mm): 750*760*2030

20GP/40GP/40HQ 21/45/45 pieces

Anhui Zhongke Duling Commercial Appliance Co.ltd is a high-tech enterprise which specialized in designing,developing and manufacturing medical Freezers more than 10 years, like ultra-low temperature freezers,deep freezers,blood platelet incubators and customized medical freezers, widely used in laboratory & bio-medical storage equipments, cold room, cold-chain logistics and customized instruments.

Our factory locates in Hefei city, Anhui province, China which is near Shanghai and Ningbo port, Annual output is around 10,000 sets Refrigerators.
